GAA01

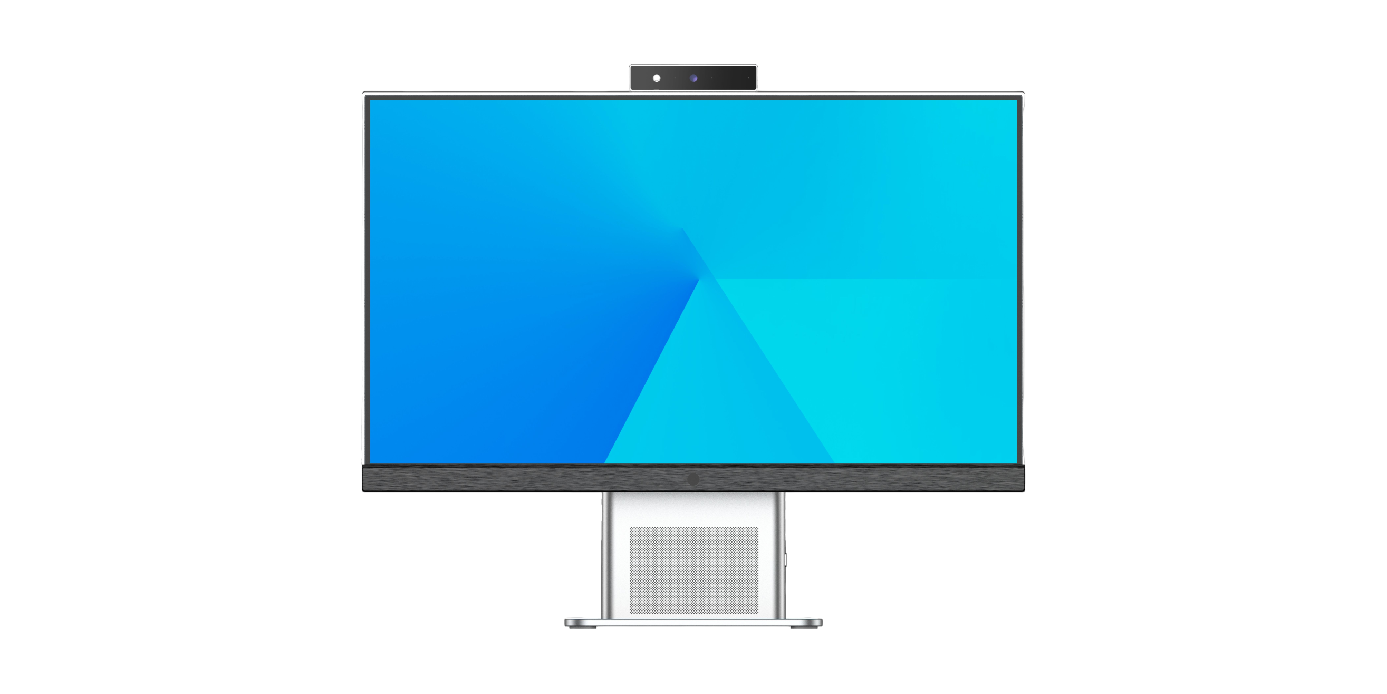

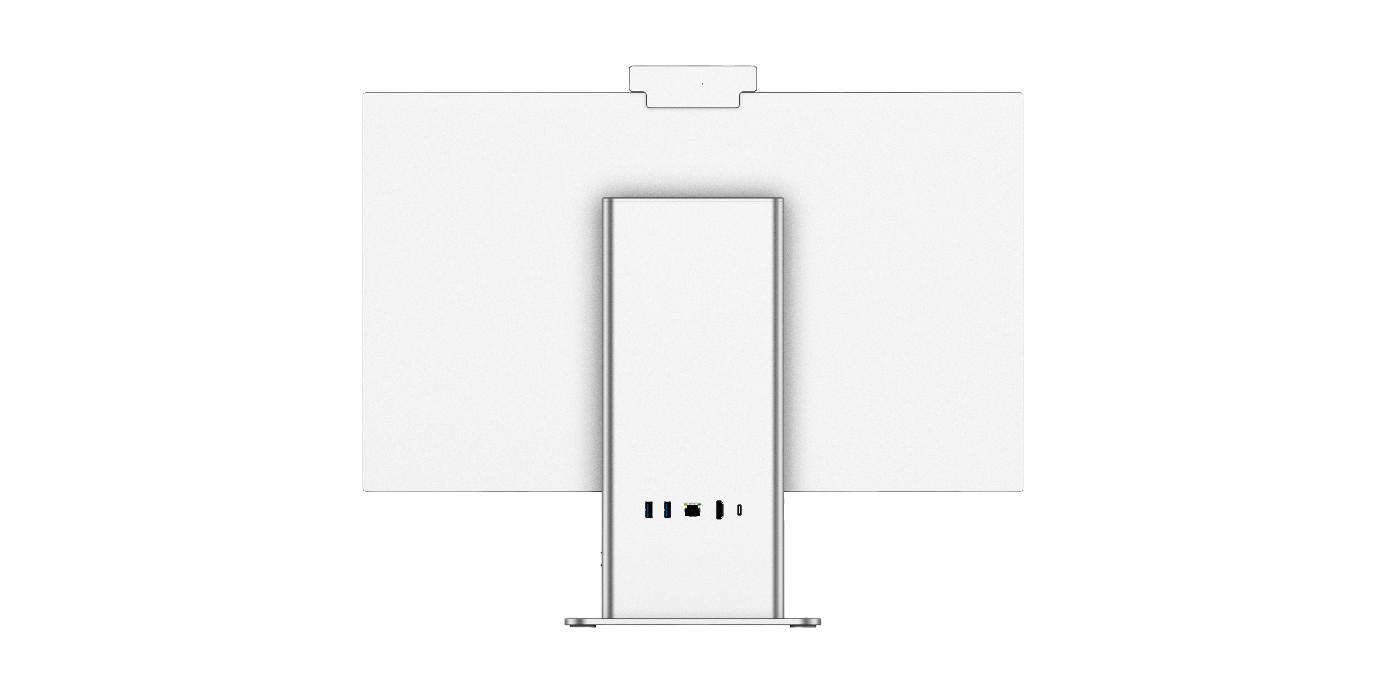

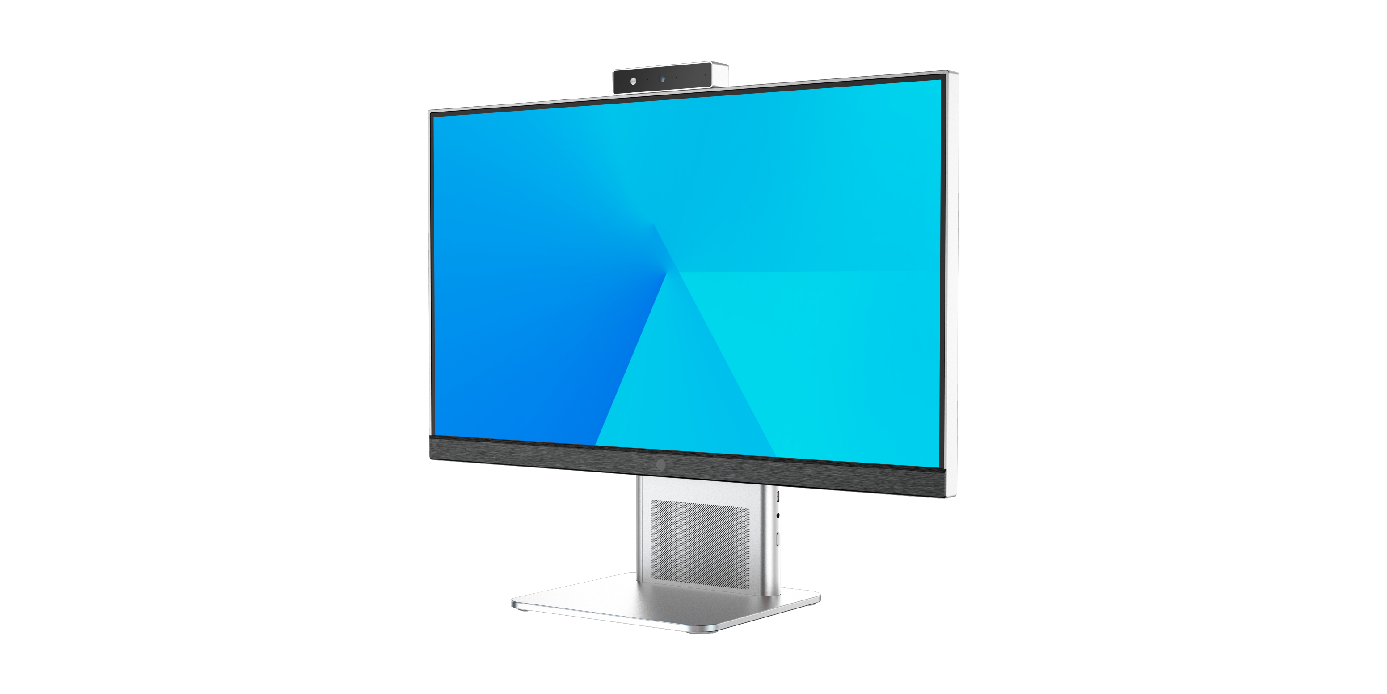

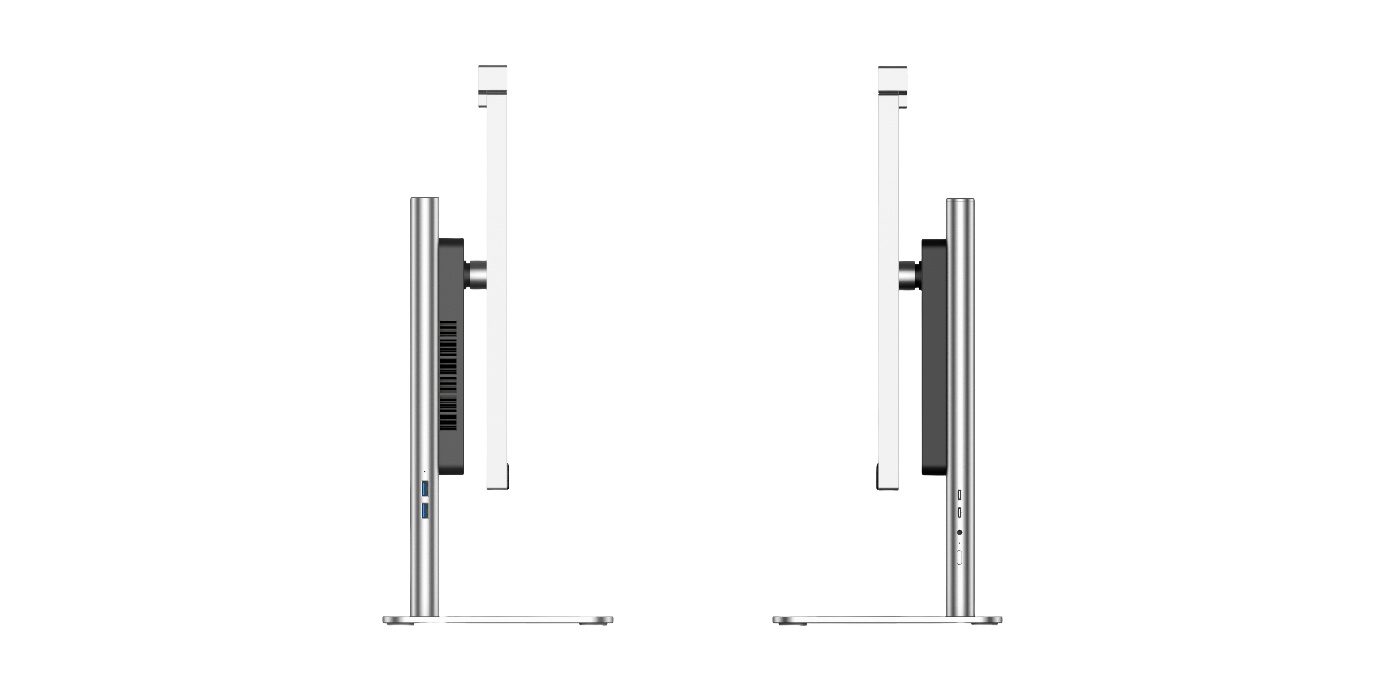

基于Meteor Lake 平臺23.8” QHD 三面窄邊框“綠色” 一體機，主板定制設計藏于立柱，底座支架采用金屬陽極氧化工藝，均熱板散熱，集成人體檢測傳感器和光學傳感器,廣泛應用于家用商務辦公等場景。
CPU | CPU | Ultra 5 125H/Ultra 5 135H Ultra 5 155H/Ultra 7 165H |
TDP | ≤65W | |
Display | Graphic card | Intergrated |
Multi displays | Support Four displays | |
Interface | 3x HDMI-Out 4K @30Hz | |
Network | Lan IC | 1 x LAN IC |
Lan Interface | 10/100/1000M/2.5Gbps | |
Lan Connector | 1 x RJ45 Ports | |
Wireless Type | M.2 Key E 2230 Module | |
Wireless Interface | Mini PCIe WiFi/BT Module, Intel 3165/ Intel AX101/Intel AX210 | |
4G/5G | Not Support | |
I/O interface | Serial Port | Not Support |
USB | 4 x USB3.0A 2xUSB4C | |
Button | 1 x PowerButton, 1xClear_MOS | |
SIM CARD | Not Support | |
AUDIO | 1 xCOMBO | |
POWER | 1 x TYPEC DC-IN Connector | |
System | Memory | Dual SoDIMM DDR5 Max. 96 GB |
Storage | 1* M.2 Key M 2280 Size For NVMe/SATA SSD | |
OS | Window11 /Windows10 | |
WatchDog | Not Support | |
Auto Power On | Yes | |
RTC | Power on at specific time everyday | |
Power Input | 28V TYPEC DC-In | |
Dimension | L541*H436*W190mm | |
Operating Temp. | 0~40℃ | |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |
智微智能為您提供量身定制的解決方案，滿足從產品定義到軟硬件開發的各種需求，會安排資深產品工程師為您服務。
