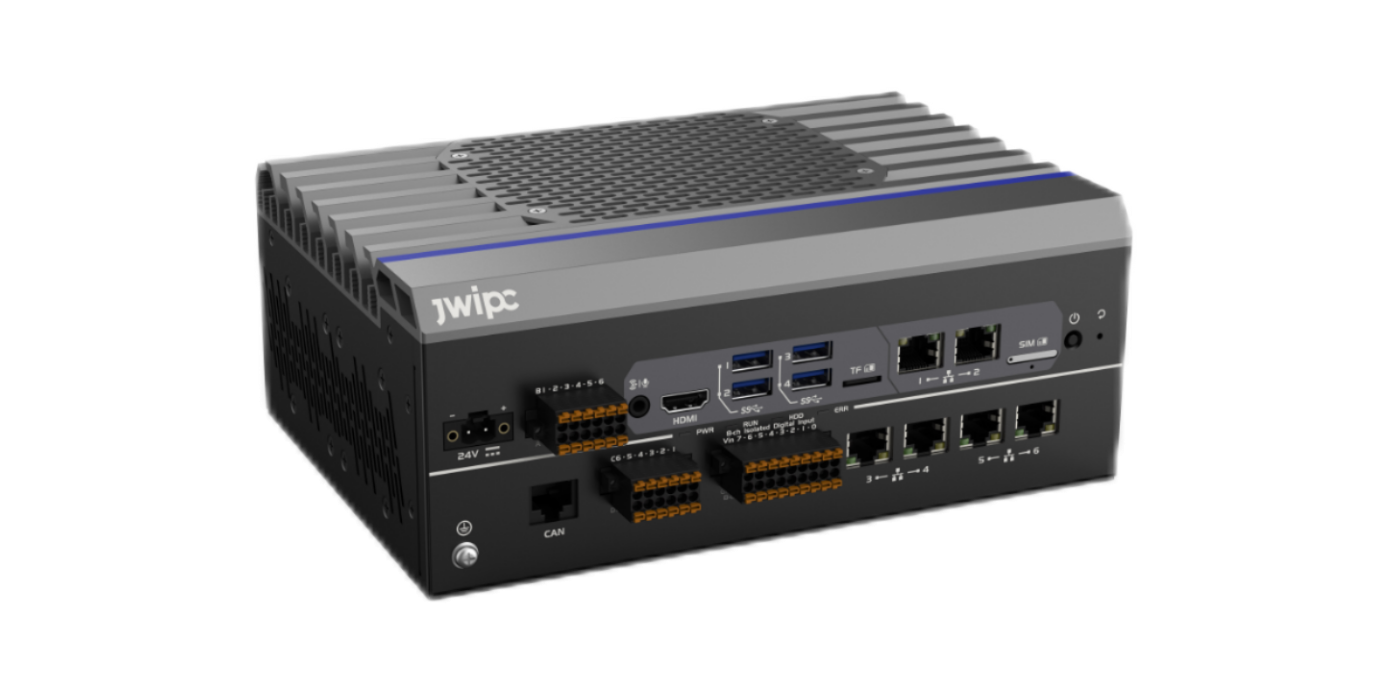

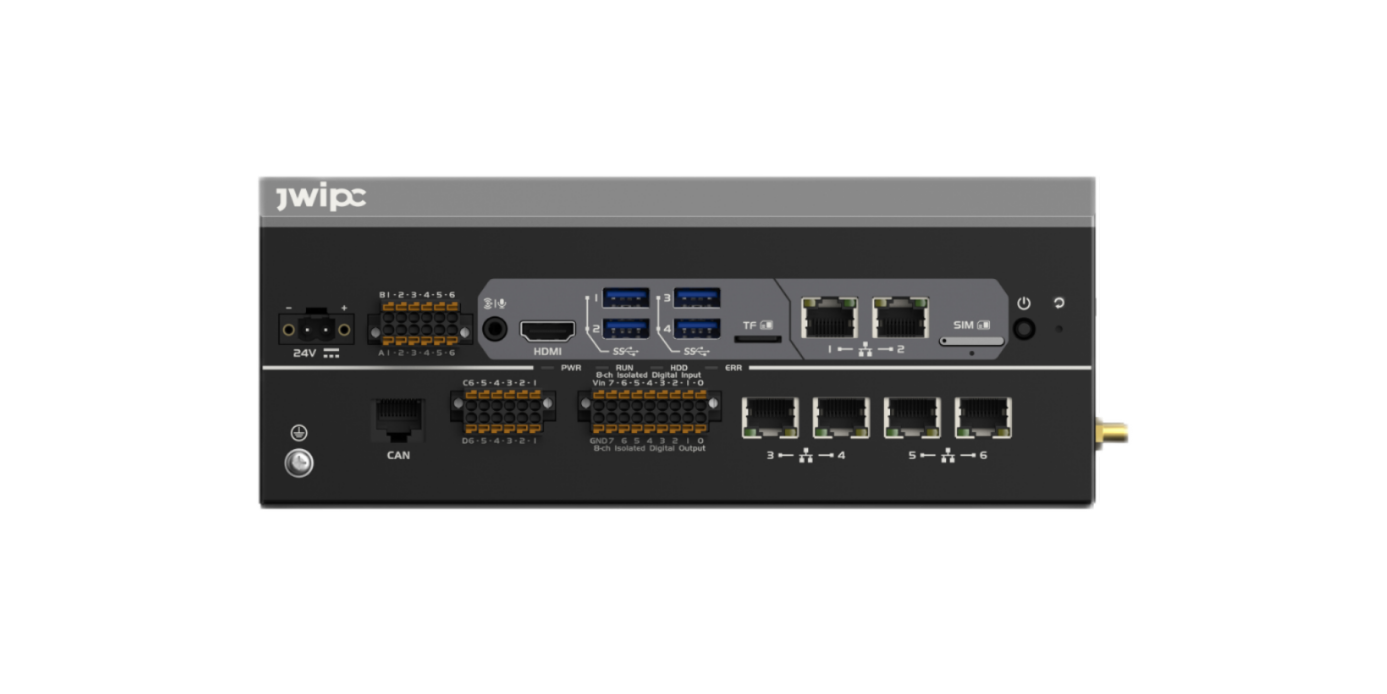

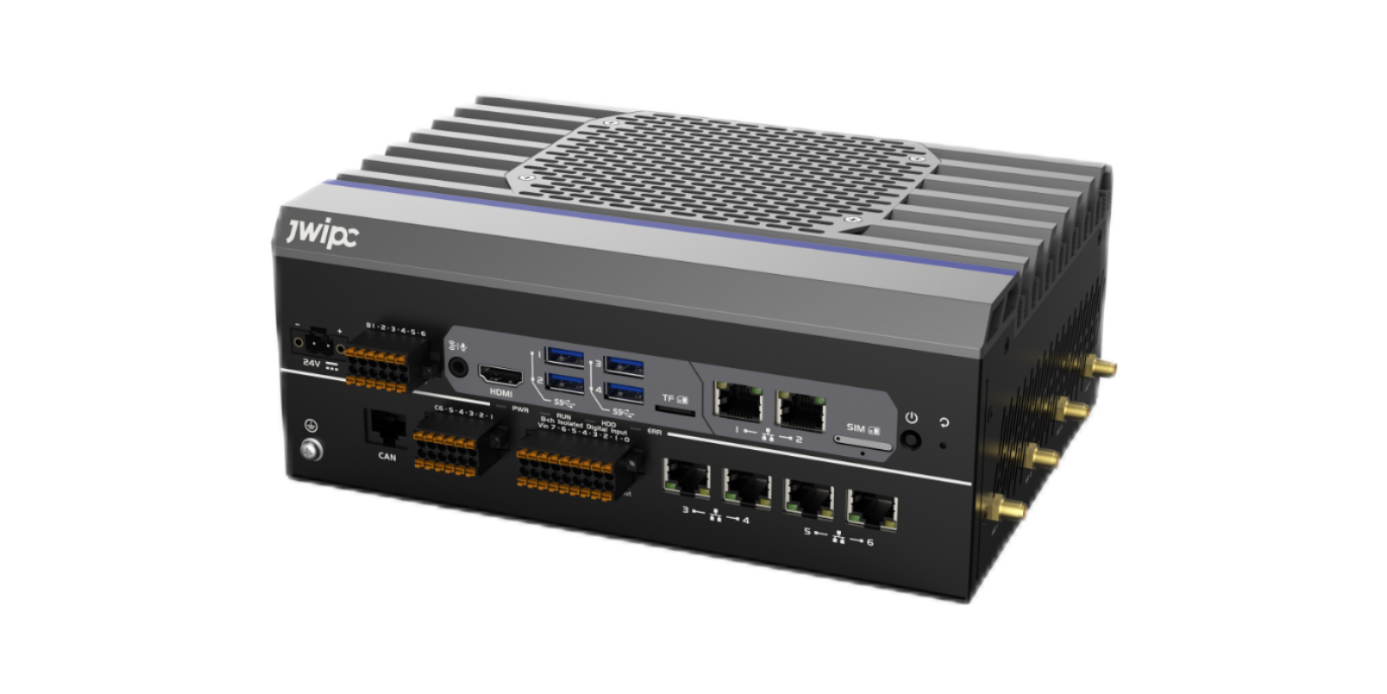

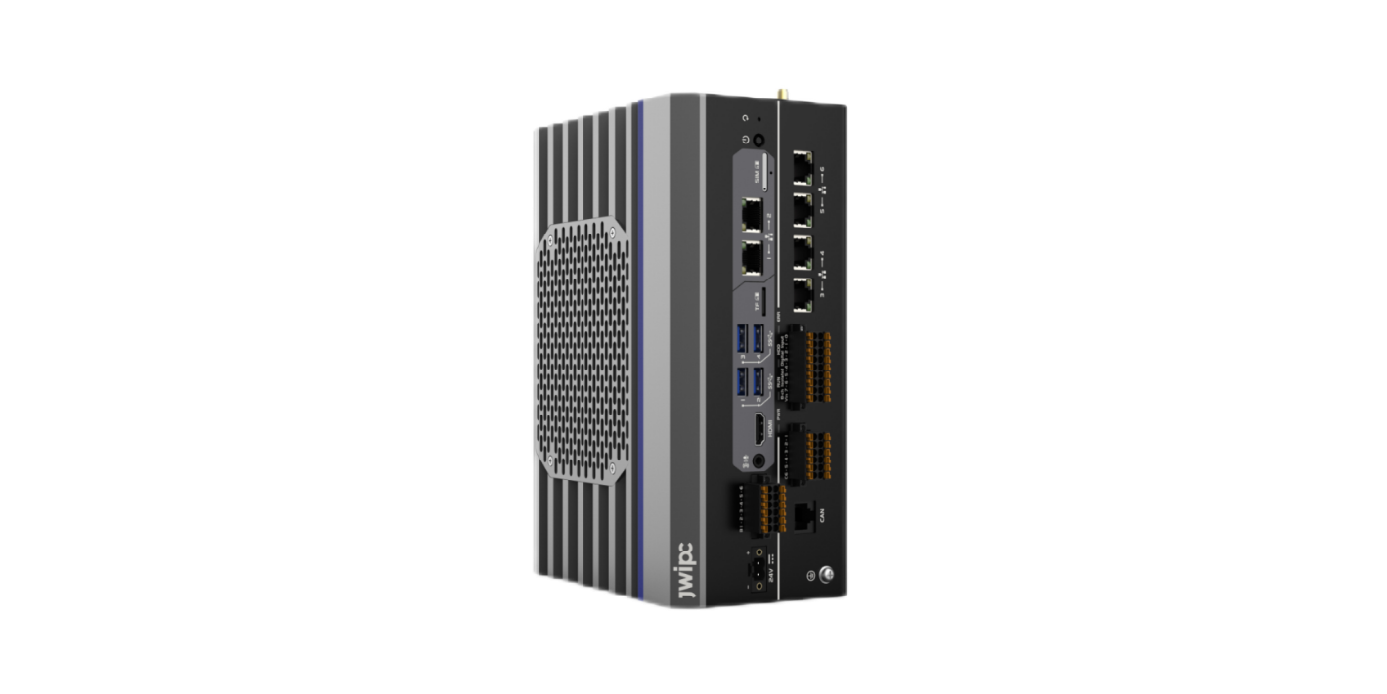

PAS-6101

機器視覺控制器

基于 NVIDIA Jetson AGX Orin 系列模組設計，提供 275 TOPS AI算力和優異的能效經濟性，支持通過PAS標準總線靈活擴展，適用于融合深度學習的機器視覺應用。

?: ARM平臺機器視覺控制系統 基于 NVIDIA Jetson AGX Orin 系列模組設計提供最高 200/275 TOPS (INT8) AI算力 Ampere GPU + 8/12x Cortex-A78AE + 32/64GB LPDDR5 基于PAS總線設計，可替換不同的擴展板

留言咨詢業務咨詢

規格參數

系統	處理器	8/12 Cores A78AE 2.2GHz
	芯片組	NVIDIA Jetson AGX Orin
	顯卡	NVIDIA Ampere, VRAM 32/64GB, 275/200 TOPS 2048/1792 CUDA Cores, 64/56 Tensor Cores
	內存	32/64 GB
	操作系統	Ubuntu20.04
I/O 接口	USB	4 x USB3.0 Type-A
	COM	1 x 12pin RS232 + RS485 + CAN, 1 x 12pin RS232 + RS422 + RS485, (Phoenix terminal, optocoupler isolated) 1 x RJ45 CAN
	LED	4 x LED, (Run, Power, SSD, Error)
擴展	M.2	1 x M.2 3052 (B-Key, Signal: PCIe + USB, expandable 4G/5G module) 1 x M.2 E-Key, expandable WiFi/BT module, optional WiFi 5/WiFi 6
顯示	Graphics Processor	NVIDIA Ampere GPU
顯示	Interface	1 x HDMI2.1, Up to 4096 x 2160 @60Hz
存儲	Storage Device	64GB eMMC 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) 1 x Micro SD
音頻	Audio Codec	/
音頻	Audio Interface	1 x 3.5mm Combo Jack
以太網	LAN	2 x 10/100/1000 Mbps 4 x 10/100/1000 Mbps
電源	Power Input	9~36V DC IN
電源	Power Interface	/
其它	OS Supports	Ubuntu 20.04
	Watchdog Timer	1 to 255 sec./min. per step
	TPM	TPM 2.0
物理參數	Dimensions	230 x 165 x 91.5mm (9.06” x 6.5” x 3.6”)
	Weight	/
	Mounting	Desk/Wall-mounting, Din rail mounting
工作環境	Operating Temp.	-25~60℃ (-13~140 °F) w/ 0.7m/s airflow
	Storage Temp.	-40~85℃ (-40~185 °F)
	Humidity	10%~85% Humidity, non-condensing
	Shock	With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration
	Vibration	With SSD: 2Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis
